Symmetrical Instrument Panel

$1,240.00 – $1,540.00

Aerosport Products is now shipping its RV-10 Carbon Fiber Symmetrical Instrument Panel. The panel is available directly from us or from leading panel vendors. If you purchase all your avionics at the same time, these vendors can also customize your panel inserts for the Aerosport Products’ RV-10 Carbon Fiber Instrument Panel.

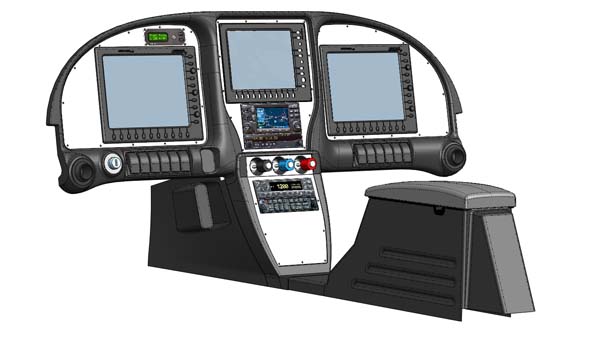

The RV-10 Carbon Fiber Symmetrical Instrument panel features:

Three removable panel inserts. Two that can accommodate 10″ EFIS, one for the 8″ EFIS and a center communication stack. Additionally, the lower center console also has a panel insert.
The lower console will accommodate a panel insert for additional avionics or our standard or new throttle quadrant insert.
Two preformed mounting locations for standard air vents. Air vents are not included.
A preformed location for a Mag/Starter switch.
An area to locate multiple switches in front of the pilot. This area will also accommodate a Vertical Power VP-200 switch.
An area to mount a flap switch.
Preformed locations for standard throttle, mixture, and manifold pressure controls. If you plan on using the option Throttle Quadrant Insert, these can be used for other functions or covered with a panel (not included).
An area in front of the right seat for additional switches or environmental controls.
On each side of the lower console is an area in which a parking brake or environmental controls could be placed.
A Garmin Touch will fit on both side insert panels.

You may order the RV-10 Carbon Fiber Symmetrical Instrument Panel in two configurations:

OPTION 1: SKU# RV10033 Complete set that includes an instrument panel and lower console. Mounting hardware and panel inserts are not included. International, Hawaii, and Alaska-based customers will receive an additional invoice via Paypal to cover the incremental fees for shipping.
OPTION 2: SKU# RV10033 Includes only the instrument panel with a lower cap. The lower console, mounting hardware, and panel inserts are not included. International, Hawaii, and Alaska-based customers will receive an additional invoice via Paypal to cover the incremental fees for shipping.

All Carbon Fiber parts are currently taking 2-4 weeks for delivery. You will be charged at the time of the order. If you have any questions, don’t hesitate to get in touch with us: sales@aerosportproducts.com

SKU: RV10033 Category: RV-10

Description

Introducing the Symmetrical Instrument Panel for Rv-10 by Aerosport Products

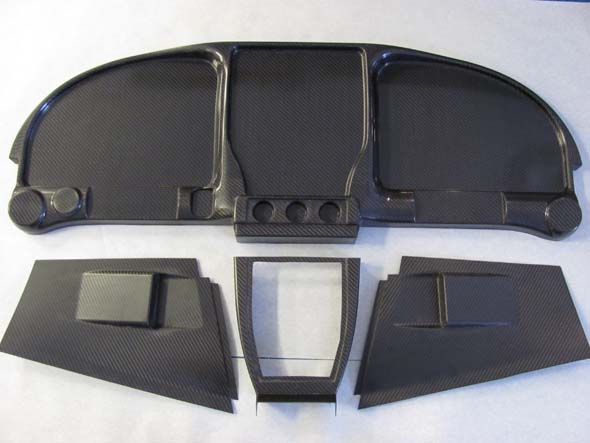

Aerosport Products proudly announces the availability of our RV-10 Symmetrical Instrument Panel, made from durable carbon fiber. Now shipping directly to you.

Key Features

Three Removable Panel Inserts
(PLEASE NOTE: Insert Panels are NOT included. DXF Files can be found below)
RV-10 Symmetrical Insert Panel

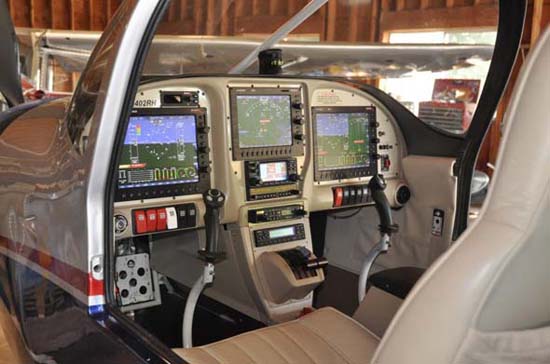

The RV-10 Carbon Fiber Symmetrical Instrument Panel features three removable inserts. Two fit 10″ EFIS displays, and one fits an 8″ EFIS and a center communication stack. The lower center console also has an insert for additional avionics.

Lower Console Flexibility

The lower console offers space for more avionics or a throttle quadrant insert, providing customization options.

Preformed Mounting Locations

The panel includes two preformed air vent mounting spots (air vents not included). It also has a preformed location for a Mag/Starter switch, ensuring easy installation.

Switch and Control Areas

The area in front of the pilot supports multiple switches, including a Vertical Power VP-200 switch. There’s also a spot for a flap switch. Standard throttle, mixture, and prop controls fit in preformed locations, or you can use the Throttle Quadrant Insert.

Right-Seat Control Area

In front of the right seat, there’s room for additional switches or environmental controls, enhancing co-pilot functionality.

Lower Console Versatility

Each side of the lower console has space for parking brakes or more environmental controls.

Available Configurations

Option 1: Complete Set (SKU# RV10033)

This set includes the instrument panel and lower console (mounting hardware and panel inserts not included). International, Hawaii, and Alaska customers will receive an additional invoice for shipping fees.

Option 2: Instrument Panel with Lower Cap (SKU# RV10033)

This option includes the panel with a lower cap only. As with the full set, additional shipping fees apply for international, Hawaii, and Alaska customers.

Delivery and Ordering Information

Carbon Fiber parts ship in 2-4 weeks. Payment is required at the time of ordering. For questions, reach out to sales@aerosportproducts.com.

Upgrade Your RV-10 Today

Boost your RV-10’s style and functionality with the RV-10 Carbon Fiber Symmetrical Instrument Panel from Aerosport Products.

Additional information

Weight	11 lbs
Dimensions	47 × 23 × 6 in
